PART 2 :
ELECTRICAL SECTION

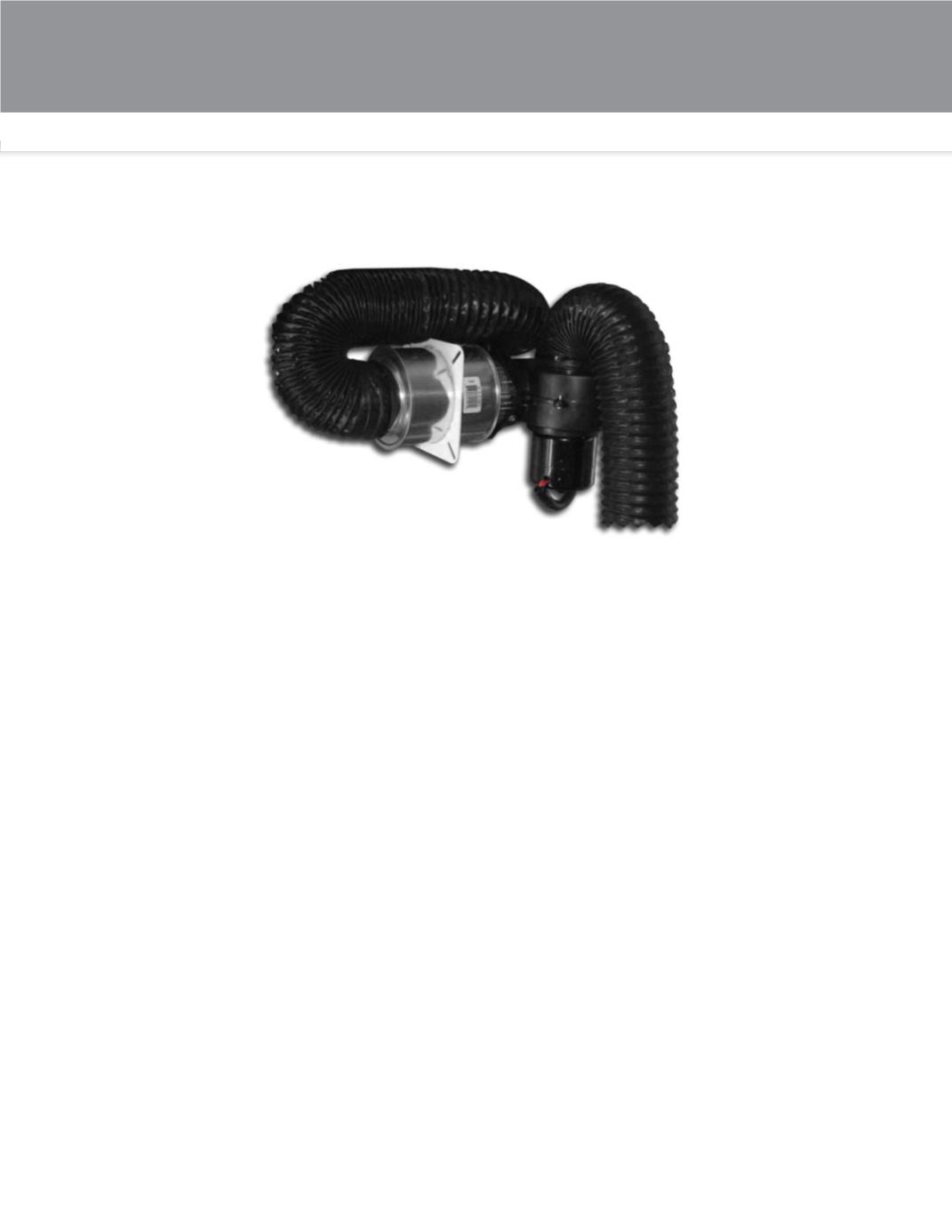

EXHAUST FAN
EXHAUST FAN
Note : The "MASTER" switch must be ON, the voltage of the batteries must be over 10,5V and the
engine must be running to activate the exhaust fan.
The exhaust fan is located on the left wall, behind medical cabinet, on the rear side.
The exhaust fan in the patient compartment has three (3) different speeds : LOW, MEDIUM and
HIGH.
Note : The exhaust fan is automatically activated in low speed mode as soon the engine is run-
ning.
OPERATION
Front console :
On the front interface control, press on the "REAR EXHAUST FAN" button to activate the exhaust
fan in medium speed mode. The indicator light on the button will flash. Press the button again to
increase the speed of the exhaust fan (high speed mode). The indicator light on the button comes
on. Press the button again to change the speed of the exhaust fan to low speed mode.
Rear console :
Push the "REAR EXHAUST FAN" switch up to activate the exhaust fan in medium speed mode.
The light on the switch will flash. Push the switch up again to increase the speed of the exhaust
fan (high speed mode). The indicator light on the switch comes on. Push the switch down to
decrease the speed of the exhaust fan.
Auxiliary rear console :
Push the "REAR EXHAUST FAN" switch up to activate the exhaust fan in medium speed mode.
The light on the switch will flash. Push the switch up again to increase the speed of the exhaust
fan (high speed mode). The indicator light on the switch comes on. Push the switch down to
decrease the speed of the exhaust fan.
