3 / 3
4 ¾”
1 ”
4
1/8”

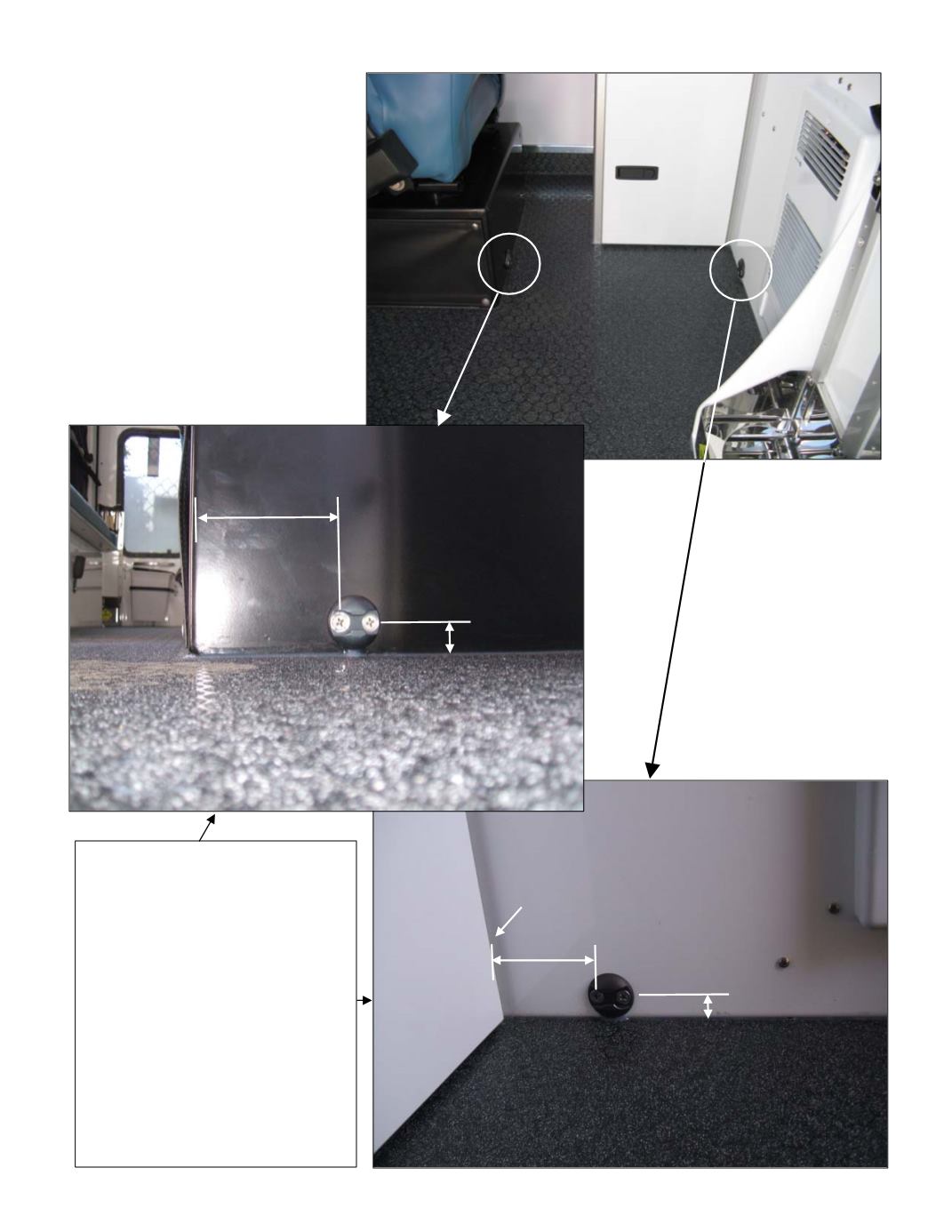

In “addition” to the supplied nuts
used to fasten the anchor to the
rear of the seat pedestal; install
the supplied acorn nuts to
prevent gear stored below the
seat from catching on exposed
threads.
Before drilling the holes for the
bulkhead mounted anchor; check
on the other side of the bulkhead
for wiring/map-racks/fire
extinguishers etc. If required,
adjust the location of the anchor
+/- ½” to accommodate pre-
existing items.
TO DOOR
1 ”
