0137

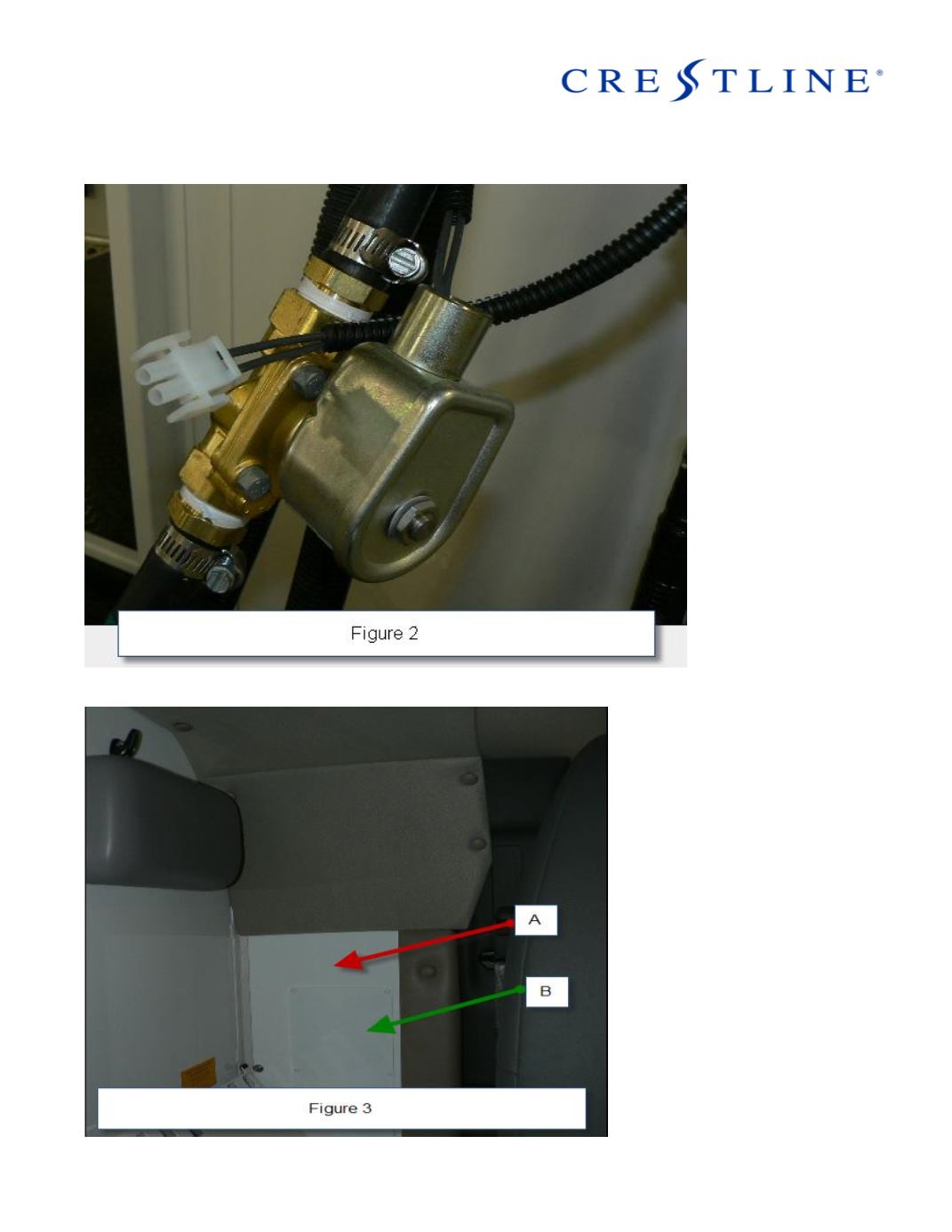

Figure 2 illustrates the water shut off valve as well as the male side of the Mate N Lock connector.
Note: The connector is run upwards along with the rest of the wiring/hoses. It’s shown in this image
down by the valve for the purpose of this advisory.
If you cannot reach the connector, you will have to remove the panel shown in Figure 3 Letter A. Only
the Fleetmax’s will have the access panel as shown in Figure 3 Letter B.
