CRSeriesTDR
Contact Rating (Resistive)
Max. switching current 1ADC, AC
Max. carrying current
0.5AAC; 1A 30VDC
UL/CSA rating 0.5AAC; 1A 30V, DC
ExpectedLife@ 25°C:
100,000 operationsminimum at rated loads
Environmental Information:
TemperatureRange:
Operating and storage: -25°C to+60°C, (-13°F to+140°F)
Mechanical Information:
Termination: .110 inch (standard), .250 inch (optional), or screw terminals (optional)
Enclosure: Black plastic case
Mounting: Single screw or optional 2-screw panelmount
Weight: 0.8 oz (23g) approx.

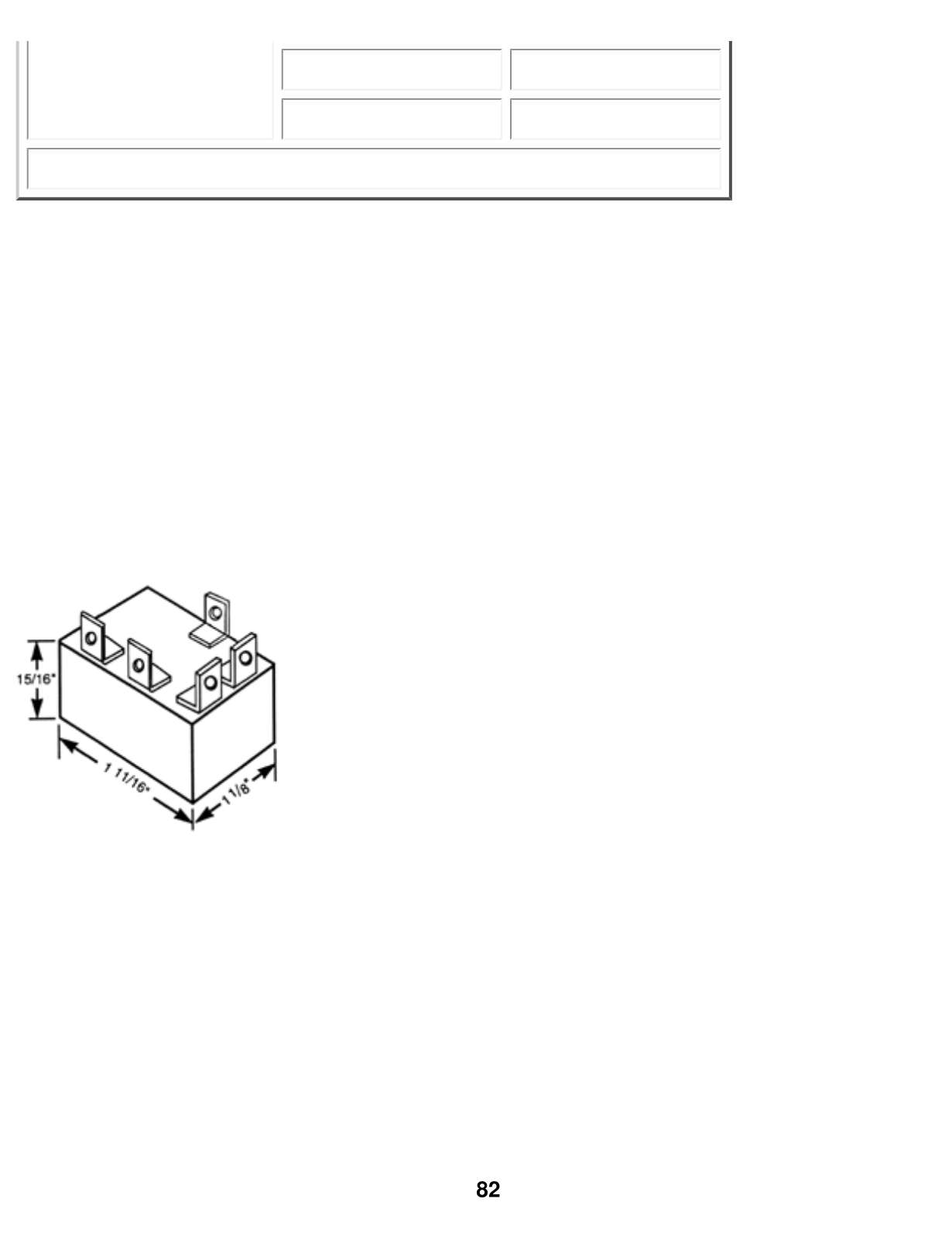

OutlineDimensions:
TimingSpecifications:
Timing - Fixed: 1 through 600 secs.
TimingRanges: 1 - 120, 120 - 240, 240 - 480, 480 - 600 secs.
Custom timing is available.
TimingAdjustment:Knob adjustable potentiometer.
TimingTolerance: FixedUnits: ±5%;AdjustableUnits: -0 to+25% ofmaximum specified delay time.
Minimum specified value or less at low end.
Repeatability: ±5%
ReleaseTime: 60ms typical, 100msmaximum
InitialDielectricStrength:
Between open contacts: 500VRMS, Between contacts& coil: 500VRMS
