M.C.C. ATTENDANTREARCONSOLE
-

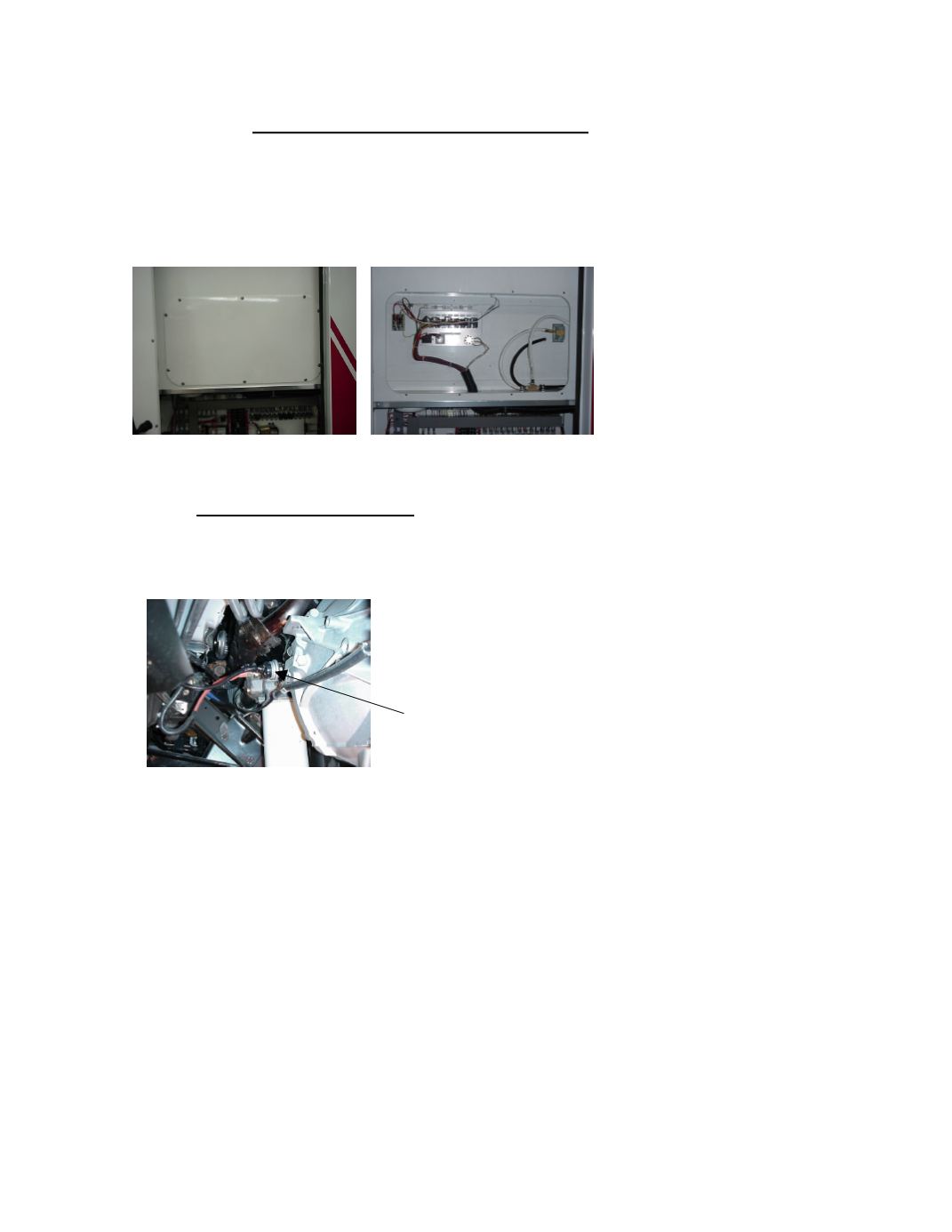

Toaccess all components and switches located in theM.C.C. area, remove the
screws that secure theaccess panel located in the left sideElectrical Control
Compartment (fig. 7)
- Now all switchwiring, backlightingandother electrical components, alongwith the
oxygen lines, outlets and connections areeasilyaccessed for inspectionand service. (fig.
8)
Fig. 7
Fig. 8
OILPRESSURESWITCH
Theoil pressure switchwhichoperates theHOURMETER and theAMBULANCE
CONNECTFUNCTIONS is locatedabove the engine oil filter on the lower left sideof the engine.
(fig. 9)
please refer to theelectrical schematicsonwhat thepressure switch controls
Fig. 9
COMPONENTACCESSANDREMOVALPROCEDURE
